DoosPlanner (BoxPlanner) screenshots

Below are three screenshots to give an idea of the interface.

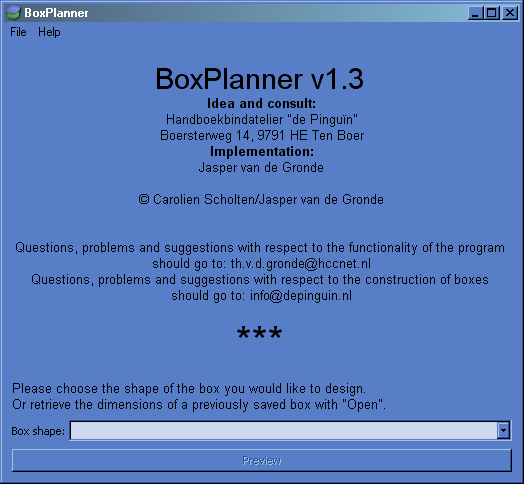

This is the welcome as it is shown as soon as the program is loaded.

The welcome screen

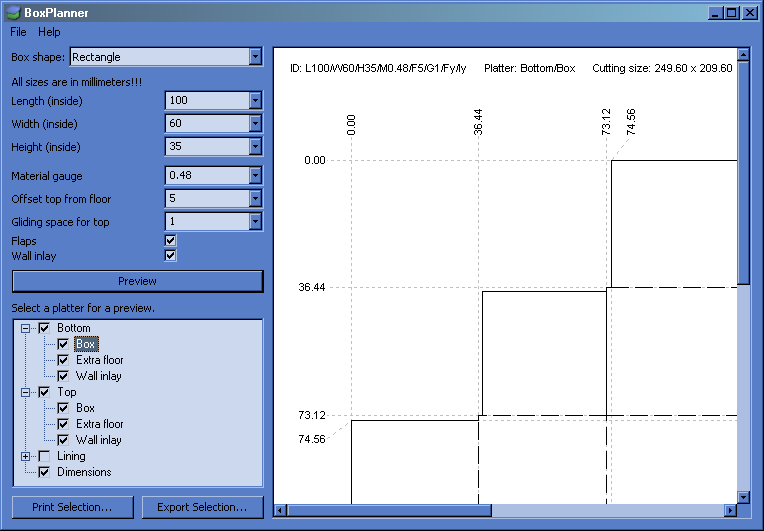

Now an example of the interface while designing a rectangular box, the design in the right half of the screen is generated by the program, based on the values entered by the user in the left upper corner of the screen.

Example of a rectangular box

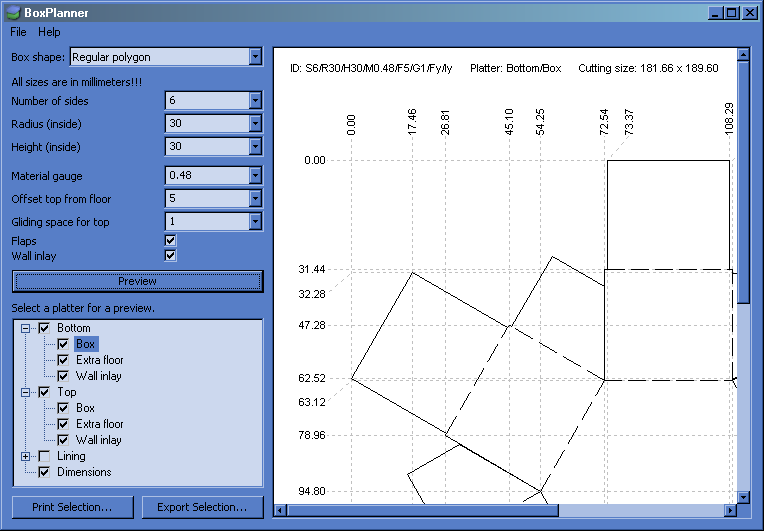

An example of the screen while designing a polygonal box.

Example of a polygonal box

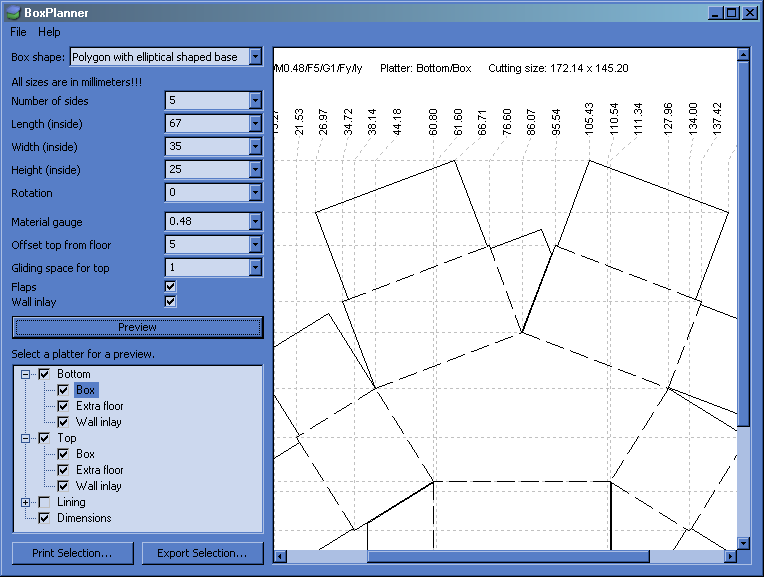

Last but not least an example of a polygon based on an ellipse.

Example of a polygon based on an ellipse
